Accu-Tech USA will be exhibiting at the 2017 Pack Expo West trade show in Las Vegas, Nevada September 25-27th
Come out and see us in Booth S-7498 and check out some of our new product releases!
Remember us from the 2017 Golf Industry Show?
If you still need to replacements please complete the following:
- Download the excel document
- Fill in your current actuator specs
- Email back to firstname.lastname@example.org for pricing and delivery!
We are pleased to announce the promotion of Brendan Lukasik to Application Engineering Manager. Brendan has been with Accu-Tech USA for 3 years as an Application Engineer. During this time he has demonstrated his ability to organize and manage projects at a high level. His commitment to the growth and success of Accu-Tech USA is evident as he has proven to be a dedicated member of the Engineering Team.
Brendan joined Accu-Tech USA after graduating from NC State with his B.S. in Mechanical Engineering in 2013. Brendan has implemented many protocols and processes, which have improved efficiency in the Application Engineering Department. This promotion recognizes his outstanding achievement, and knowing he is up to the challenge, we look forward to his continued efforts as an advocate for our business.
Please join us in congratulating Brendan on his promotion!
Check out our newly developed Multi-Axis Mounting Actuator system in action! If you have any questions or upcoming projects similar to this and need pricing, please contact our office at (919) 863-0837!
Few things can bring a machine to a grinding halt (literally!) like a jammed linear bearing. Metal shavings, sawdust, glass powder – all can shorten the useful life of linear guides dramatically. The use of proper bottom and end seals can prevent a great deal of maintenance headache. While not necessary in every circumstance, seal options should always be considered!

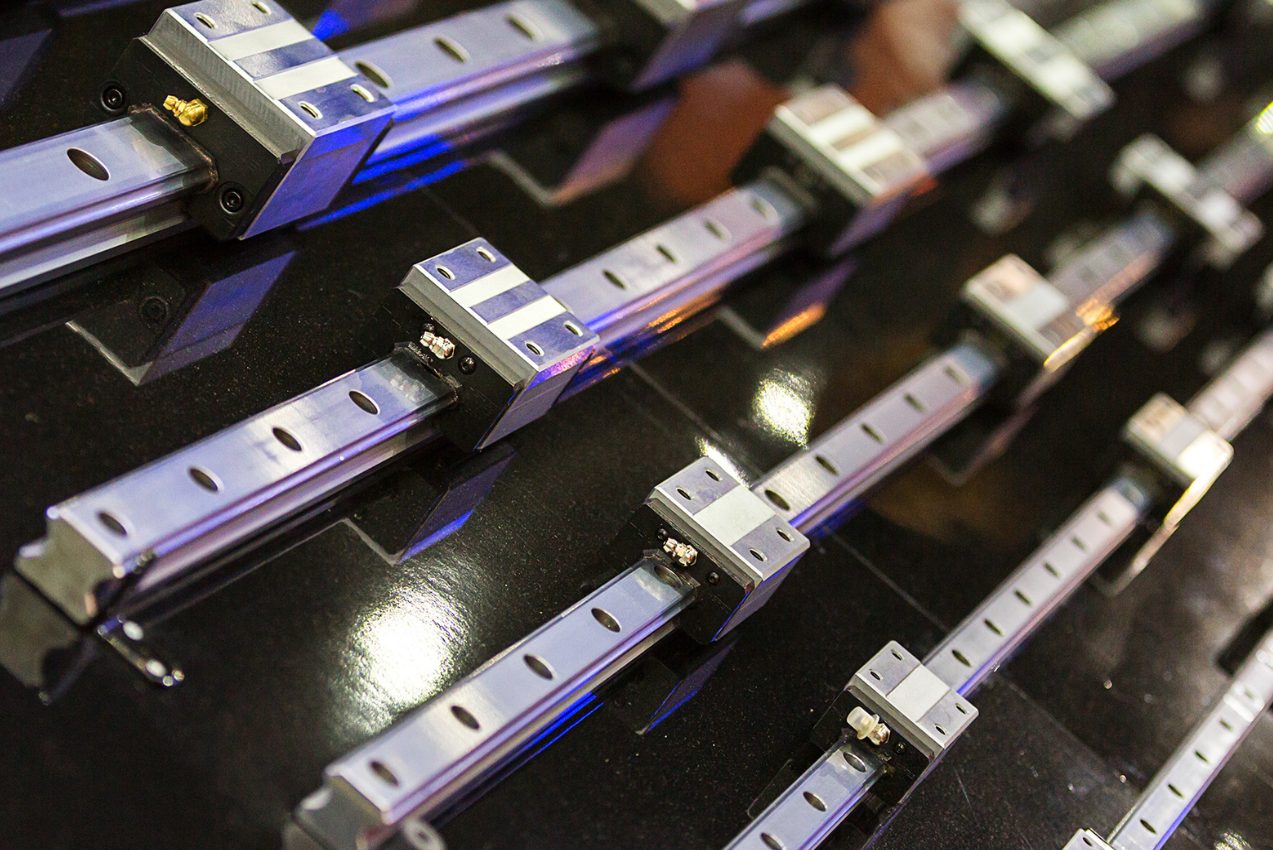

Seals For Linear Guides
Most linear guides have 3 different seals that make up the contamination protection system. These are the end seal, bottom seal, and inner seal. In addition to these 3 seals, a metal scraper can be added to either or both ends of a linear guide for additional protection. The end seal is an external NBR (Nitrile Rubber – also known as Buna-N) seal that is attached to the end of the carriage. The seal edge contacts the profile of the rail and protects against contamination that is resting on the rail. The inner seal and bottom seal are internal to the carriage. They contact the top of the rail and the sides of the rail, respectively. The inner seal protects for contamination from inside the holes in the rail and the bottom seal protects from anything along the sides of the rail or bottom of the carriage.
What Are My Options?
With our linear guides there are many seal options to consider. They range from no seal at all to bottom and end seals specially designed for high-debris environments. When specifying one of our guides, the seal option is the 4th designation. For example, the part number “MSA 25 E ZZ FC N” calls bidirectional seals and metal scrapers.
These options and product codes are listed below:
- Standard Option:
The standard for our MSA, MSB, MSR, SME, and MSG linear guides is the “SS” bidirectional end seal & bottom seal. For MSC and MSD series linear guides, the “RR” Low friction end seal and bottom seal is standard. For the majority of applications these seal offer an effective solution.
- Heavy Contamination:
For applications that require protection from large amounts of debris on the linear guides “DD” double end seals are typically the best option. Options with metal scrapers such as the “ZZ” and “KK” are good options for machines such as plasma cutters where metal debris may stick to the rail or where the guides will run through metal chips.
- Fine Abrasive Dust:
New for 2015, we now have the “HD” high-dust seal as an option. It is specifically designed with CNC wood routers and similar applications in mind. Both the end and inner seals have been improved to keep the finest sawdust out. The “HD” option is only available for MSA sizes 15-35 and MSB sizes 15-20.
- Low Friction:
For applications that need the lightest resistance possible “LL” low friction end seals with no bottom seal are a good option. If even the low drag of an “LL” is too much, our linear guides can be used with no seal at all, only a metal scraper. This should only be used if there is to be absolutely NO debris.
Last Points For Consideration
There are a few considerations to take into account when selecting seals that are sometimes overlooked. The length of the seal, resistance of the seal, and rail caps or cover strips for the rail are all important factors when designing in linear guides. These topics are covered in detail in this document and can be found in the back of our catalog (pages B202-B212).
- When choosing a seal option for linear guides always be sure to consider the additional length it will require! For example, on an MSB 35 linear guide the “KK” double seals and scraper option will add 15mm to the overall length of the carriage.
- End seals add fairly significant resistance – with proper lubrication end seals can add anywhere from 2 – 65N of resistance (depending on series). While this additional resistance is typically negligible, it is still worth considering.
- Good contamination protection for linear guides isn’t just limited to the seals on the carriage! The mounting holes in the rail can collect a significant amount of debris in them. While the inner seals offer protection from this debris, it’s better to eliminate this build-up altogether using rail caps or cover strips. Rail caps are plastic disks that are tapped into the rail holes after mounting and the cover strip is a thin steel strip that is fixed to both ends of the rail after mounting.
Hopefully you found this guide informative. If you have any questions or would like more information, please feel free to contact us here.
by Brendan Lukasik
Accu-Tech USA proudly attended ATX Texas, its first major trade show, in Houston, TX on October 13th and 14th! We were joined by our partners at TOYO Automation and ABL Hi-Tech. It was a great introductory opportunity to put our products, capabilities, and value added services on display.
The entire team at Accu-Tech USA had been hard at work over the course of the last few months leading up to the event in preparation for the company’s first trade show exhibitor appearance. With major contributions coming from all departments, a strong successful showing was made possible. Our Sales and Marketing team lead the charge by spearheading the initial trade show efforts and developing new marketing material. The Customer Service Department ensured that the logistics of travel and lodging were made painless for all parties in attendance. Our talented, sharp-witted Engineering Team served by helping to design and select demo parts and assemblies, and tuned the systems to peak show performance. And lastly, thanks to the tireless efforts of Production Management Department, we were able to gather all of the displays, promotional material, and other items necessary to make the show a success, and seamlessly get everything delivered on time and ready to go for the big show!
We would also like to express our gratitude to Patrick Dowden and Carlos Melo of Automation Southwest (ASW). Patrick and Carlos are a tag team of talented and knowledgeable sales engineers that serve the greater Dallas-Fort Worth and Houston markets. We thank them for their time and efforts in assisting us throughout the duration of the trade show, and we look forward to growing our business in the region through our partnership with the ASW team.
Without a doubt, our first show was a major success for our growing young company! We met with many local Texas industry leaders across the fields of packaging, oil and gas, factory automation, 3D Printing, and high tech distribution. We are confident that the high quality leads we gathered will provide a significant boost to our business in the coming months. Many potential customers who stopped by our booth were impressed by our high quality products, and especially by the level of service we demonstrated we are able to provide to anyone interested in working with us. Beyond the realm of sales, the trade show also proved to be an invaluable learning experience for our organization as we continue to impact the national precision linear motion industry. It was certainly an important step for us, and we are excited about where we see ourselves going in the coming years.
Accu-Tech USA is already in the process of planning the attendance of its next trade show. Stay tuned for more information, and if we happen to be in your area, we hope to see you there!
