Selecting the optimal linear motion system is a critical engineering decision that impacts machine performance, precision, and reliability. Engineers must carefully evaluate linear motion components, including linear guides, ball screws, belt drives, and electric actuators, to ensure the system meets demands for load, speed, accuracy, and duty cycle. This guide breaks down the technical considerations for selecting the right linear motion system and highlights common mistakes to avoid.

Types of Linear Motion Systems: Technical Considerations

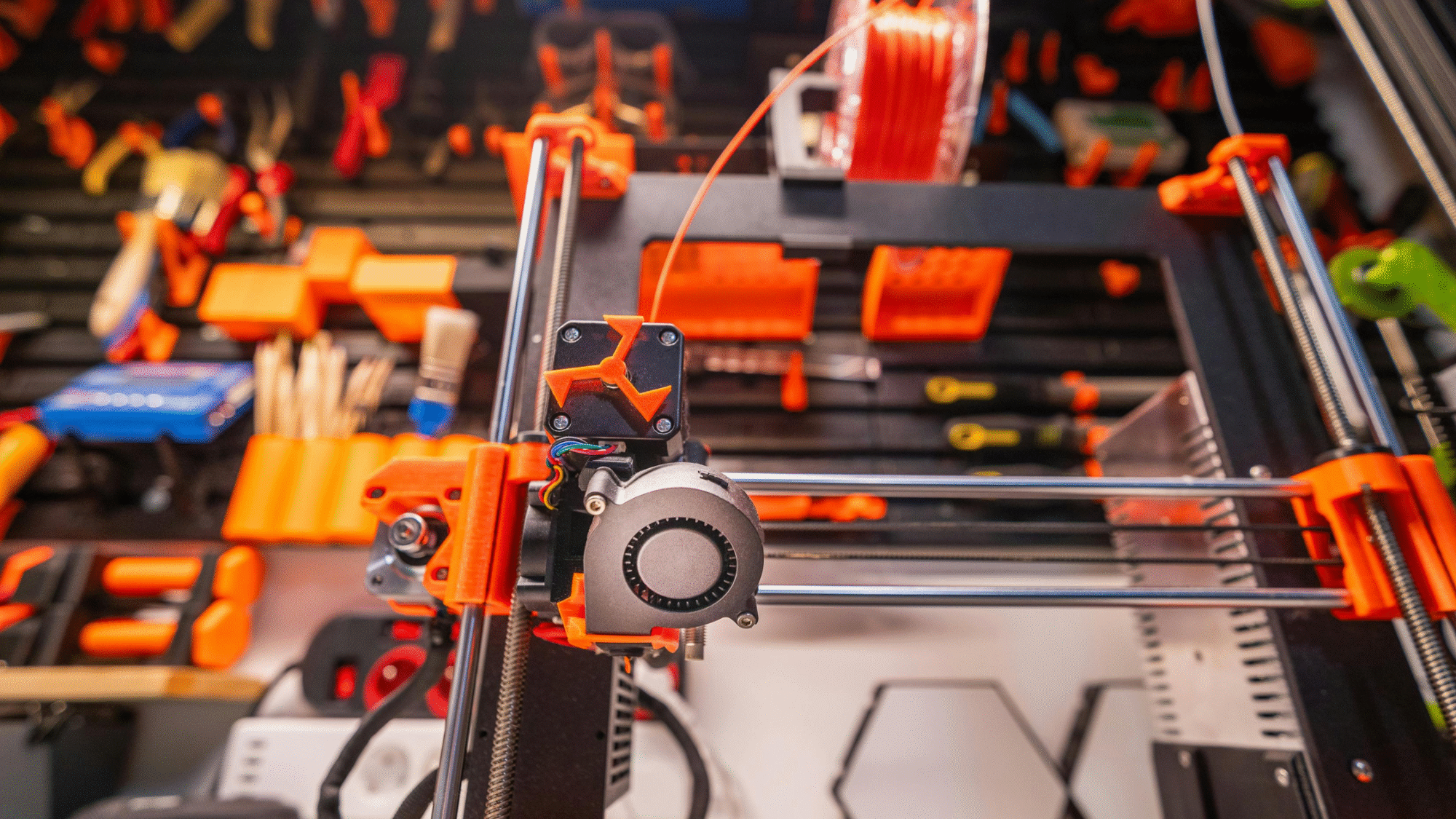

1. Linear Guides

Best for: High-precision positioning under moderate to heavy loads.

Technical factors to consider:

• Load capacity vs. applied load: Select guides with sufficient dynamic and static load ratings, accounting for side loads and shock.

• Stiffness and deflection: Guides with higher rigidity reduce positioning errors under heavy loads.

• Life expectancy: Use L10 life calculations to predict maintenance intervals.

Common engineering pitfalls: Oversizing linear guides increases cost and inertia unnecessarily, while undersized guides risk premature wear or failure.

2. Ball Screws

Best for: High-accuracy linear motion with repeatable positioning.

Technical factors to consider:

• Lead selection: Faster leads allow higher speeds but reduce mechanical advantage.

• Backlash and preloading: Essential for minimizing positional errors in CNC and robotic systems.

• Life calculations: Consider duty cycle, operating environment, and lubrication strategy.

Engineering pitfalls: Ignoring thermal expansion in long-travel ball screws can result in positioning errors.

 Optimize your ball screw performance with load-life analysis from our engineering team – get in touch.

3. Belt Drives

Best for: Long travel distances with moderate precision requirements.

Technical factors to consider:

• Tensioning: Proper tension minimizes backlash and extends belt life.

• Pulley selection: Diameter and material impact belt efficiency and wear.

• Speed vs. load tradeoffs: Belt drives are ideal for fast motion, but torque limitations must be considered.

Engineering pitfalls: Using belts for high-precision applications may result in cumulative positioning errors due to stretch or slip.

Our specialists can model your belt-driven system for maximum speed and reliability. Schedule a technical review today.

4. Electric Actuators

Best for: Automated applications requiring integrated feedback and programmable motion profiles.

Technical factors to consider:

• Torque and force requirements: Ensure actuators can handle both peak and continuous loads.

• Duty cycle rating: Overuse can reduce lifespan and increase heat buildup.

• Control integration: Compatibility with PLCs, motion controllers, and sensors is essential for precise automation.

Engineering pitfalls: Ignoring acceleration and deceleration profiles can cause overshoot, reduced accuracy, and premature wear.

Design precise motion systems with high-performance linear motion actuators. Contact our team to discuss a tailored solution.

Comparing Linear Motion vs Actuators

For engineers evaluating linear motion vs actuator options

Factor	Linear Guides / Ball Screws / Belts	Electric Actuators
Precision	High with proper sizing	High if integrated with feedback
Load	Wide range depending on component	Limited by actuator rating
Speed	Fast with belts or optimized screws	Programmable speed, subject to motor limits
Integration	Requires external drives	Built-in control options
Duty Cycle	Depends on component ratings	Specified per actuator, can be continuous or intermittent

Need help deciding between a linear motion guide, ball screw, belt drive, or actuator? Our engineers provide application-specific recommendations. Get in touch today!

Key Selection Criteria for Engineers

When evaluating linear motion systems, consider:

• Load (static & dynamic): Include side loads, shocks, and torque.

• Speed & acceleration: Maintain within the system’s limits to prevent wear.

• Accuracy & repeatability: Define positional tolerances to select appropriate components.

• Environmental conditions: Dust, temperature, moisture, and chemicals affect component life.

• Duty cycle: Continuous vs intermittent operation affects component sizing and maintenance intervals.

Avoiding Common Engineering Mistakes

1. Over- or under-specifying components, leading to unnecessary cost or reduced system life.

2. Ignoring system stiffness: precision components require rigid support.

3. Neglecting lifecycle calculations: L10 life, lubrication, and thermal effects impact reliability.

4. Failing to integrate with motion control systems: accuracy depends on compatible feedback and motion profiles.

 Maximize reliability and performance. Let our engineers assess your linear motion system today. Reach out to learn more.

Selecting the right linear motion system is crucial for achieving optimal machine performance, precision, and longevity. Understanding the tradeoffs between linear guides, ball screws, belt drives, and electric actuators allows engineers to design systems that reduce maintenance, improve throughput, and enhance product quality.
